oak milling

Oak Log Arch Bridge

Its always a shame when a big oak tree succumbs to stormy weather. Especially when they were as nice as this one. The first 6 meters of the trunk were perfectly straight and there were no large knots in it. After that there was a large curved section. I discussed what it could be used for with the client and it just so happened that the tree fell right towards a small river which they had intended to build a bridge over. Shipwrights of the past used to treasure natural curves in oak as they are much stronger than ones that are cut from straight grained timber. So it was decided to make use of the curved part to make two sides of a footbridge.

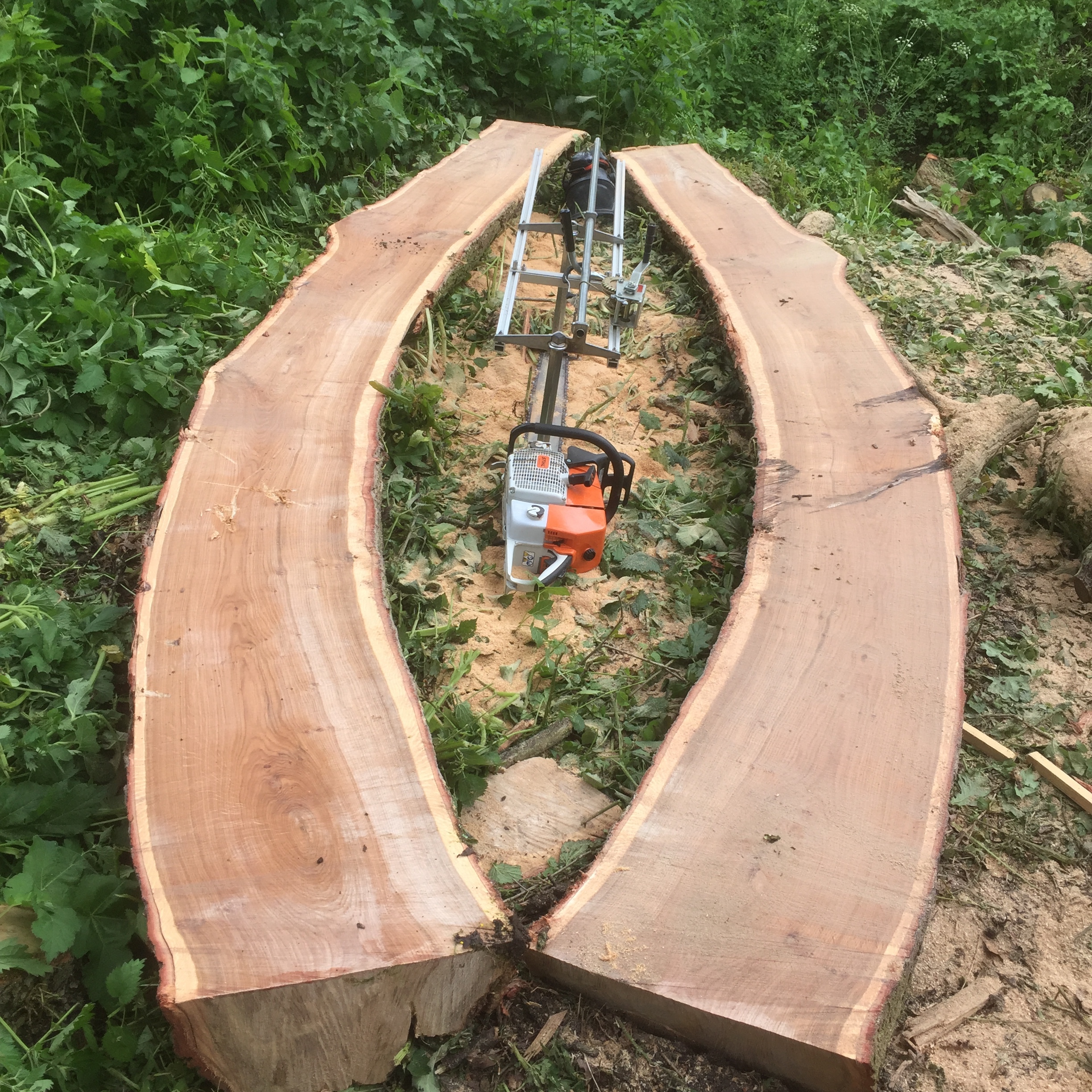

After milling the curved bit in half I then went on to cut 2 inch planks out of the first straight section of the trunk. These were for the treads of the bridge. I also cut some 3 inch planks which were sawn again to make 3x3 for the structural parts of the bridge.

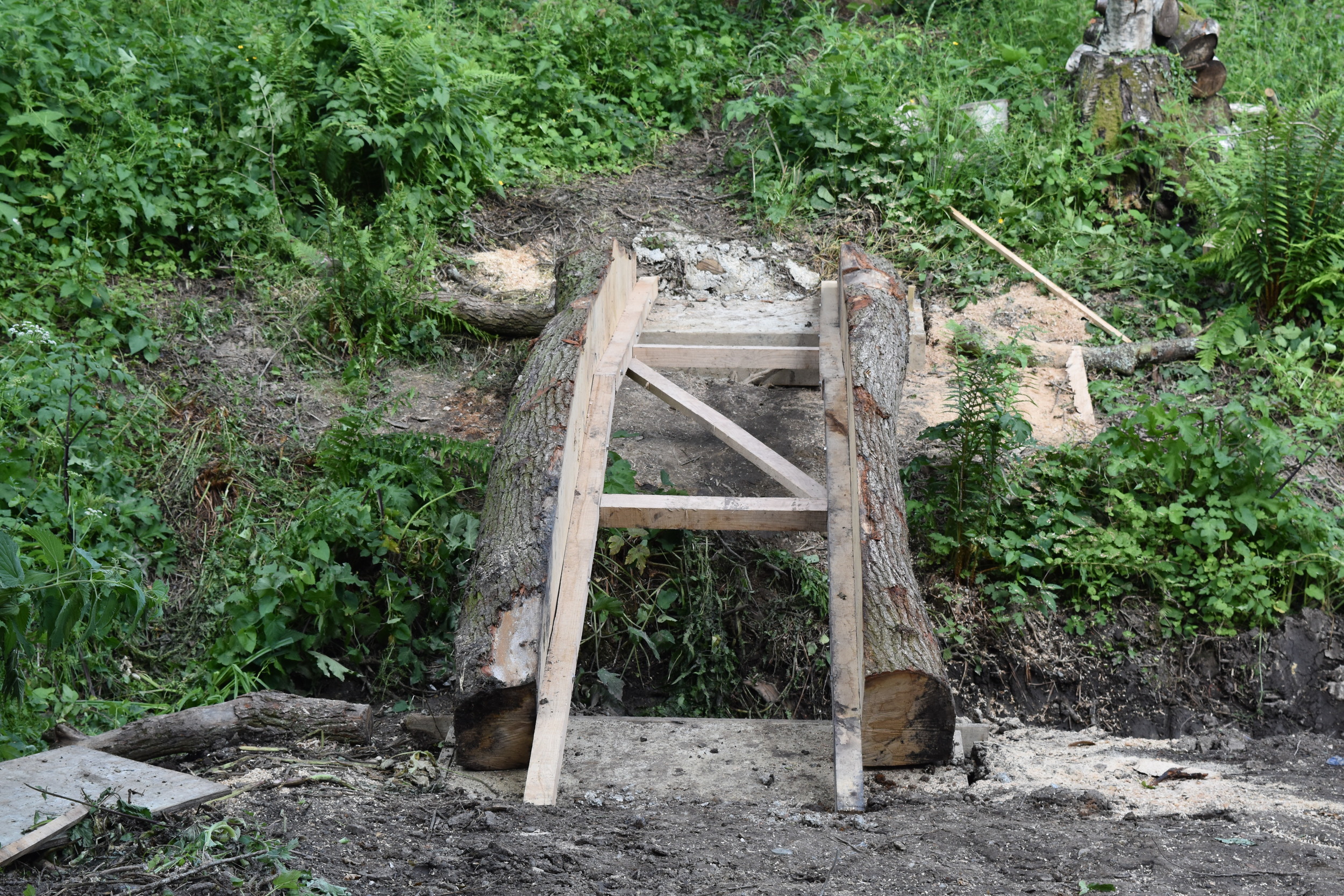

The gardeners did a brilliant job of clearing the area and then setting two concrete pads for the bridge to sit on.

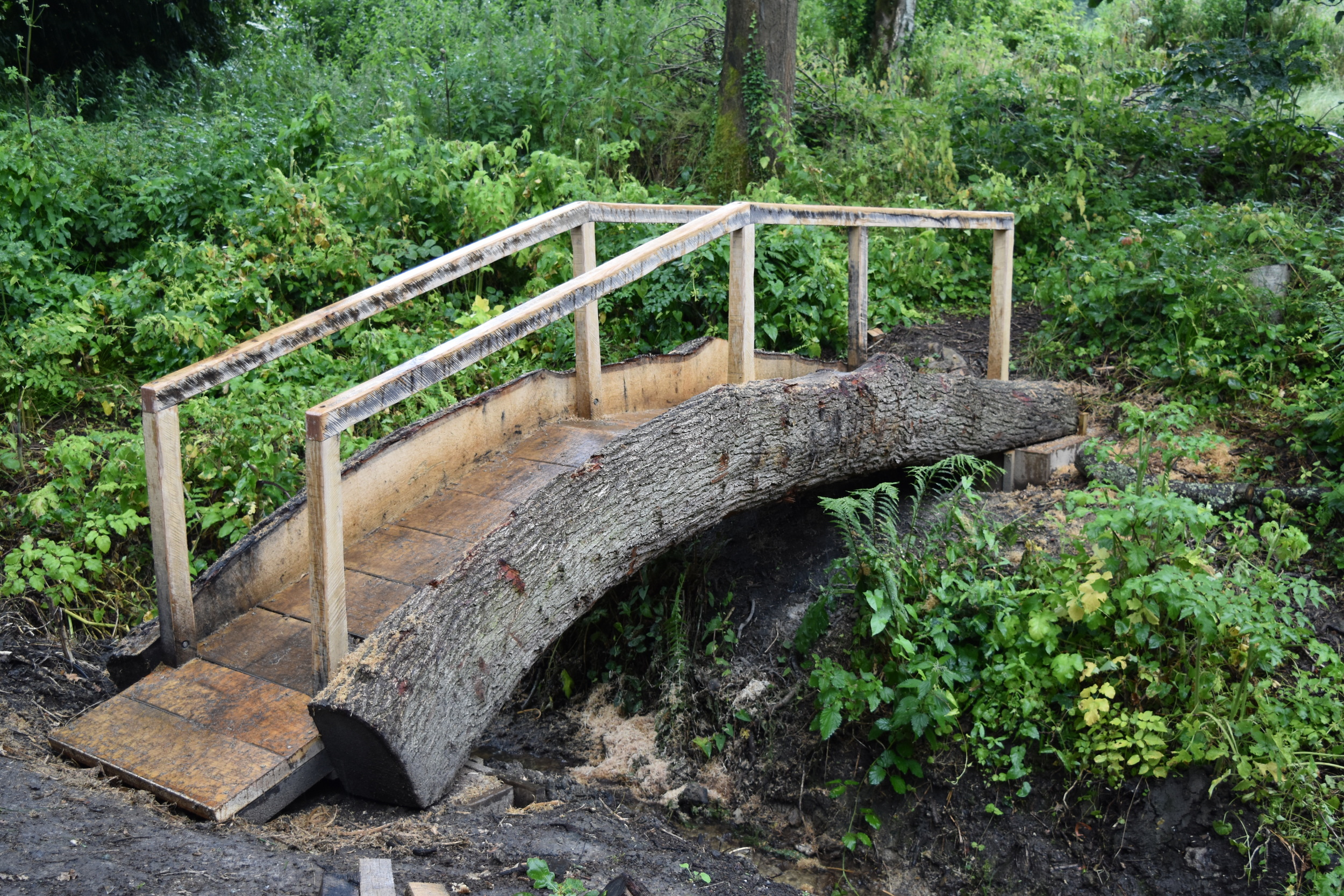

The hand rails and treads were then cut in and attached. It was a really nice job to follow from start to finish and I'm pretty happy with it. Its all made out of solid Oak so I'd imagine it will last the foreseeable future!





Oak milling in Bromley

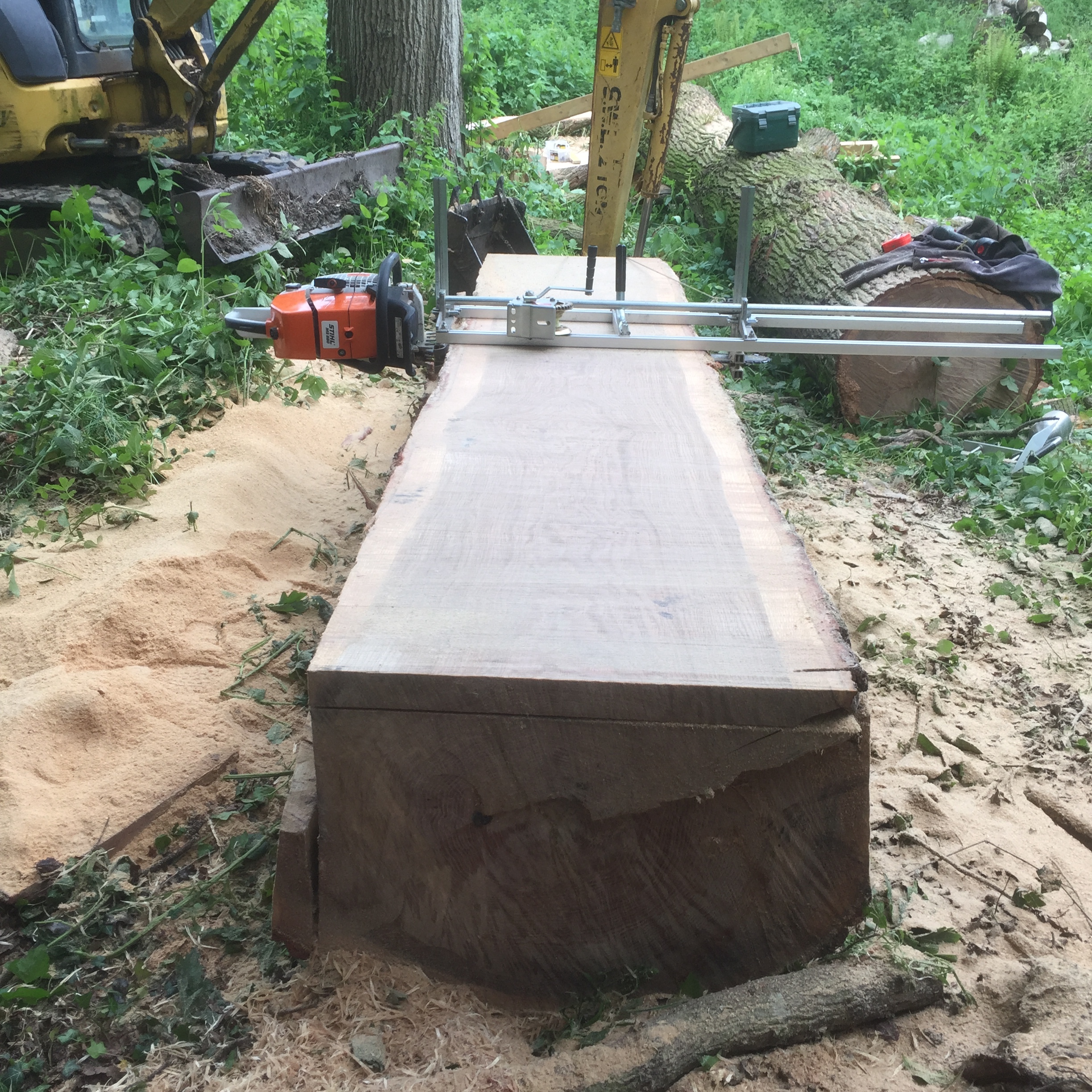

Making use of a victim of the recent storm Katie. This oak was milled into a 3 inch thick boards and also 1.5 inch boards. After the top slab was cut I sawed one of the sides off to removed a large flair in the log. The log itself was on a pretty steep hill (pictures don't do it justice..), it was interesting to see how adaptable the Alaskan set up is for logs that are in difficult spots.











I recently invested in a larger saw and Alaskan sawmill frame which means I have the option to cut boards up to 1.5 meters wide!
